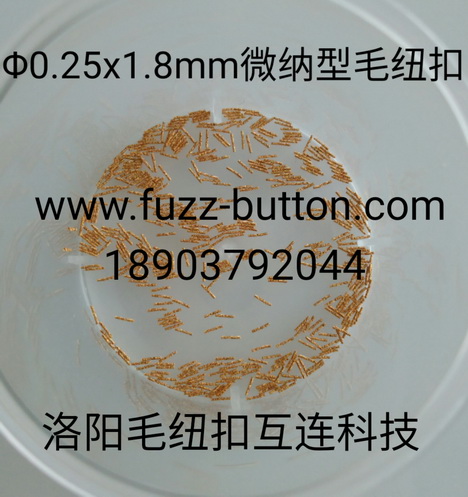

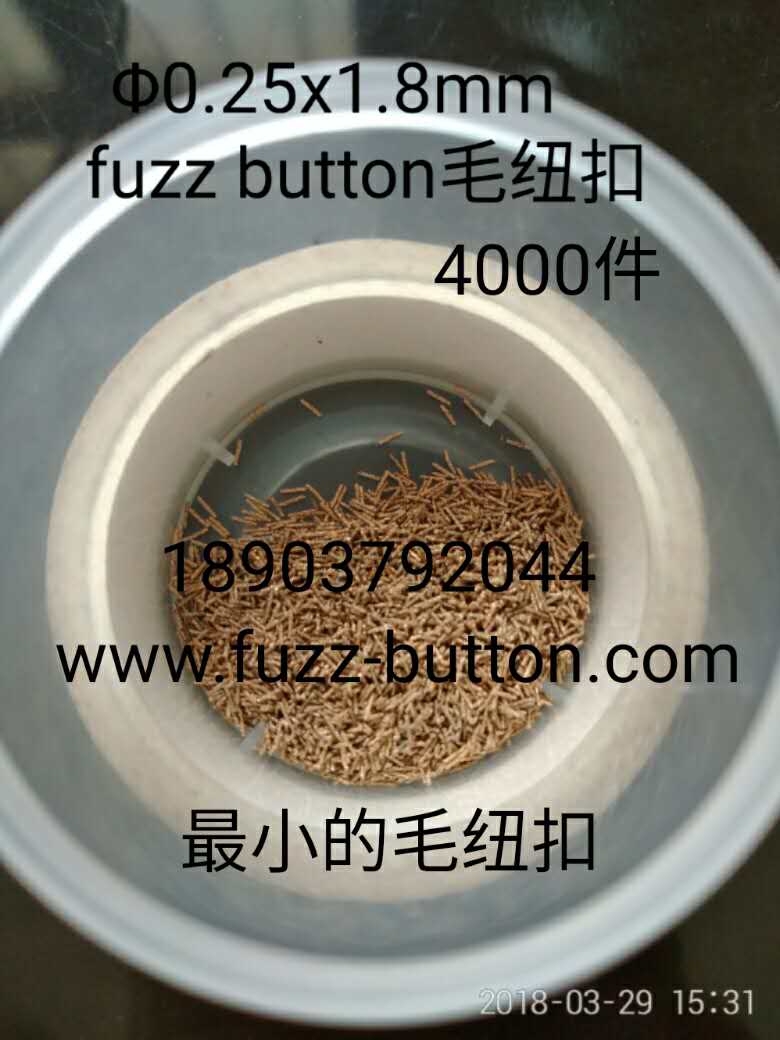

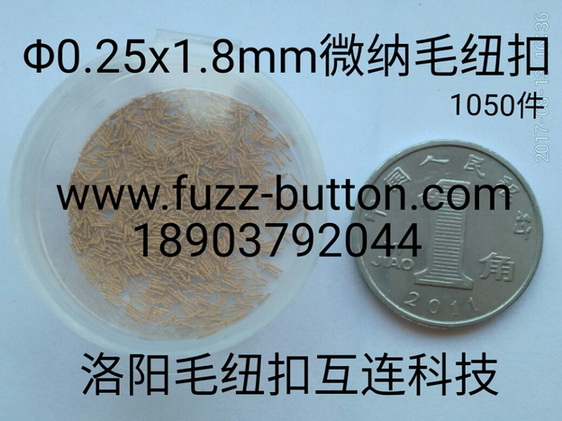

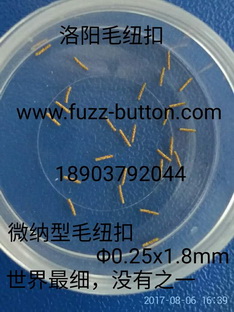

Φ0.25x1.8mm Floss Pin 80-010070 i.e. Fuzz Button,Micro-nano type,ultra-high frequency
- Type 80-010070
- Description
1、Diameter 0.254mm, length 1.8mm
2、Small size, small pitch, high frequency
3、Board-to-Board connections
4、Vertical connection
5、Zero-insertion force
6、Solderless connection
7、End face elastic contact
8、Large-tolerance design
Φ0.254x1.8mm Floss Pin i.e. Fuzz Button connectors, micro-nano Fuzz Button, is currently the smaller Fuzz Button, and the center-to-center distance of the array can be as small as 0.3mm.
Φ0.25x1.8mm Floss Pin i.e. Fuzz Button connectors has a diameter of 0.254mm and a length of 1.8mm. It can be used for board-to-board connection with a board spacing of about 1.6mm, and for vertical connection.
Φ0.254x1.8mm Floss Pin i.e. Fuzz Button connectors is suitable for transmitting RF signals up to 110G.
Since the Φ0.25x1.8mm Floss Pin i.e. Fuzz Button connectors) is in elastic contact with the pcb and has zero insertion force, it is easy to install and maintain.
Φ0.254x1.8mm Floss Pin i.e. Fuzz Button connectors) is widely used in aviation, aerospace, communication, satellite, UAV and other fields.
Φ0.25x1.8mm Floss Pin i.e. Fuzz Button connectors) has the characteristics of small size, light weight, high frequency and good performance.
The technical specifications of Φ0.254x1.8mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) are as follows:
Φ0.25x1.8mm Floss Pin i.e. Fuzz Button connectors /CPW/Microstrip Vertical connection,Micro-nano type,ultra-high frequency
一、Material Designation：φ0.254x1.8mm Floss Pin（i.e. CIN::APSE or Fuzz Button connectors）
二、Product Type：80-010070
三、Trademark：Floss Pin®、毛纽扣®、乱丝插针®
四、Brief Introduction：
Floss Pin（i.e. Fuzz Button connectors and CIN::APSE）is a patent product。made in China, made of Luoyang Fuzz button Interconnect.
Floss Pin i.e. Fuzz Button connectors is the most reliable and advanced welding compression-style interconnect technology。Floss Pin i.e. Fuzz Button connector provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
Floss Pin i.e. Fuzz Button connector is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
五、Common Applications：
1、High Speed RF Solutions：Satellite Antennas；Phased Array Antennas；
2、Smart Munitions：Missiles：Small Diameter Munitions
3、Airborne Computers and Avionics：MCM，ASIC，CPU，LRM，Gyros
六、Outline Dimension：customized, Special size, fast delivery
Fill rate：25%±5%
七、Technical Data：
Frequency：DC to 110 GHz
Rating current：0.3A
resistance：≤30mΩ
Compliance/Travel：0.1—0.3mm or 10—20% （＜30%）
Compression/Force：＞20g（With the compression increases）
Mating Cycles：＞5000 times
Operating Temperature：-60 C---150 C°
八、Wire Type：Au/BeCu：
C17200 or QBe2，Plating Au0.3um
九、Packing：
The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.
1、成功批产各种规格耐高温毛纽扣，可在波峰焊、回流焊、手工焊等高温场合使用；
2、成功批产微纳型毛纽扣，直径0.25mm，频率可达……。
以上产品是公司专有。
1, we have successfully awarded various specifications of high temperature fuzz button, can be used in wave soldering, reflow soldering, manual welding and other high temperature occasions;
2, the successful production of micro nano fuzz buttons, diameter 0.25mm, the frequency can reach.......
The above products are exclusive in china.
φ0.25x1.8mm毛纽扣Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）
毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®）是洛阳微连电子的专利产品ZL2015202039720，采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。
我们是国内较早研制成功并能批量生产毛纽扣的公司，产品性能居国内领先地位，关键参数已达到美国Fuzz Button®或CIN::APSE®等同类产品的水平。
毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。
Floss Pin（namely Fuzz Button® or CIN::APSE®） is a patent product of Luoyang Weilian electronic CO.LTD。It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
We are the early company successfully developed and mass production the Fuzz Button® or CIN::APSE®）in the China。
