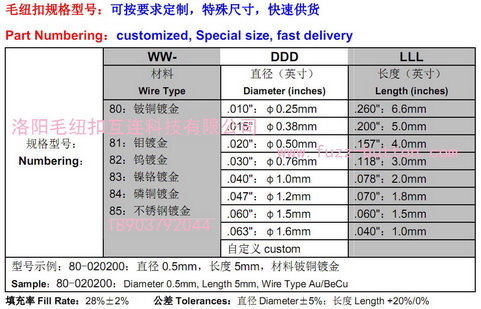

Part Numbering of Floss Pin®：规格型号

customized, Special size, fast delivery

可按要求定制，特殊尺寸，快速供货

Contact Only  仅接触件

This Floss Pin® basic configuration provides multiple points of contact and mechanical wipe. Ideally suited for applications requiring high speed, low profile, and high density, this configuration is commonly used in LGA sockets.

Floss Pin®毛纽扣提供多点接触和物理接触，非常适用于高速，小型化和高密度的应用。这种配置通常应用于LGA插座中。

Plunger-Contact  塞针--接触件

The addition of a gold-plated brass plunger increases the handling durability of the Floss Pin® contacts and provides additional height. This configuration is ideally suited for board-to-board and test applications.

镀金黄铜塞针的添加增强了Floss Pin®触件的操作耐久性并且提供额外的高度，这种配置非常适用于板对板和测试领域的应用。

Plunger-Contact-Plunger   塞针---接触件---塞针

Adding a second plunger to the connector results in a tall system (up to 1.0"), along with it being the most durable in terms of handling. This configuration is best suited for contacts that see excessive handling from both sides. Commonly used for parallel board-to-board stacking connector applications.

在连接器里增加第二个塞针，使得系统高度达1.0，在操作方面最为持久。

这种配置最适用于两侧需要过度操作的应用场合，常用于两个平行板之间板对板堆叠式的连接应用。

Contact-Spacer-Contact   接触件---垫件---接触件

Using two contacts with a gold-plated brass spacer in between creates a connector with all the benefits of the contact-only style, and the ability to span greater z-axis heights (up to 1.0"). This configuration is most often used when multiple points of contact are needed in a tall connector.

在两个触件间加入一个镀金黄铜材质的垫件，使得连接器集合了仅触件设计的所有优点并且能够使Z轴高度至1.0。这种配置经常被使用在需要多点接触的大高度连接器中。
