Introduction of Floss Pin 毛纽扣简介 ：

       Floss Pin（ namely Fuzz Button or CIN::APSE） be made in China, It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。

毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®），采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。

We are the company successfully developed and mass production of hair in the China。

我们是国内较早研制成功并能批量生产乱丝插针的公司。

It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。

毛纽扣Floss Pin®是微波模块垂直互连的理想解决方案，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。

         It takes more than an ordinary connector to support advanced performance interconnect applications。 It takes Floss Pin®， a proven solderless compression connector technology that offers exceptional mechanical and electrical performance at signals well above 20 GHz。

       比起普通的连接器，Floss Pin®毛纽扣作为一个成熟的无焊Z轴连接器技术更能支持尖端性能的互连应用，在信号高于20GHz时表现出卓越的机械和电气性能。

If you have an interconnect challenge， and need to overcome the restrictions of ordinary connector devices， Floss Pin® can provide the versatile and reliable interconnect solution you need。

如果您面临互连的挑战，需要克服普通连接器装置的限制，Floss Pin®毛纽扣能提供全面可靠的解决方案。

Compression-Mount Technology  压缩安装技术

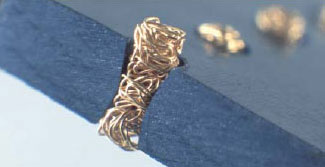

Floss Pin® is a unique， compression interconnect technology which provides superior mechanical and electrical performance。 The contact construction consists of randomly wound gold plated molybdenum wire， formed into a cylindrical shape。

Floss Pin®毛纽扣是一个独特的Z轴压缩互连技术，能提供卓越的机械和电气性能。

The basic Floss Pin® contact configuration consists of a contact installed into a customized plastic insulator with hole design。 Once in place， the contact extends on both sides of the insulator。

Floss Pin®毛纽扣被装置在定制的塑料绝缘体上的腰形孔中，一旦装置就位，该触件即延伸到绝缘体的两侧。

Quick， Solderless Installation快速，无焊安装

Floss Pin® is easily installed in two basic steps， without soldering。

First， using alignment features， the Floss Pin® interconnect is positioned between two components with matching connection footprints。

Next， the two components are compressed and fastened together。

Its as simple as that。

Floss Pin®毛纽扣安装简易只需两步且无需焊接。

第一步，对齐，将Floss Pin®毛纽扣放置在两个有匹配连接引脚的组件之间。

第二步，将两个组件压紧并固定在一起。

就这么简单。

Low Compression Force， Low Contact Resistance 低压缩力，低接触电阻

The Floss Pin® contact offers one of the best force/deflection ratios in the industry。 An average compression force of only 50g will yield a typical contact resistance of less than 20 mOhms。 This means high I/O count applications can achieve excellent electrical performance with only minimal compression force。

Floss Pin®触件提供了业内最佳的力/偏移比率之一，仅50g的平均压缩力产生20mΩ以下的标准接触电阻。这意味着高速I/0数字应用在最小Z轴压缩力下能达到卓越的电气性能。
