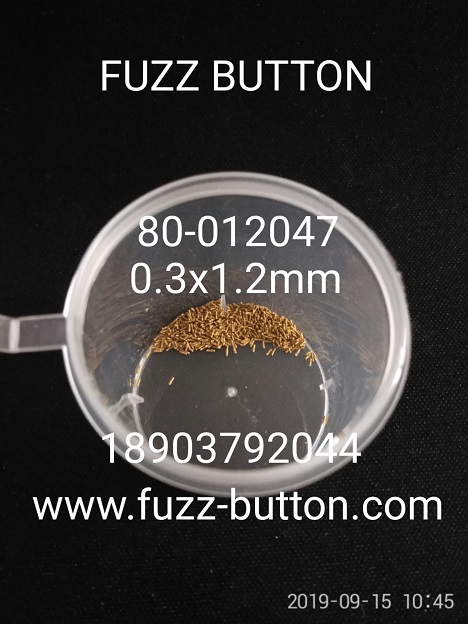

Φ0.30x1.2mm 80-012047 Floss Pin (i.e. CIN::APSE or Fuzz Button connectors, micro-nano Fuzz Button, is one of the smallest Fuzz Buttons at present, and the center-to-center distance of the array can be as small as 0.4mm.

      Φ0.30x1.2mm Floss Pin i.e. micro-nano Fuzz Button 80-012047,has a diameter of 0.30mm and a length of 1.2mm.

      spacing as small as 0.4mm,It can be used for board-to-board connection with a board spacing of about 1.0mm, and the ultra-thin profile is vertical connection.

      Φ0.30x1.2mm Floss Pin i.e. Fuzz Button connectors is suitable for transmitting RF signals up to 90G.

      Since the Φ0.30x1.2mm Floss Pin i.e. Fuzz Button connectors is in elastic contact with the pcb and has zero insertion force, it is easy to install and maintain.

       Φ0.30x1.2mm Floss Pin i.e. Fuzz Button connectors is widely used in aviation, aerospace, communication, satellite, UAV and other fields.

       Φ0.30x1.2mm Floss Pin i.e. Fuzz Button connectors has the characteristics of small size, light weight, high frequency and good performance.

       The technical specifications of Φ0.30x1.2mm Floss Pin i.e. Fuzz Button connectors are as follows:

Φ0.30x1.2mm Floss Pin i.e. 80-012047 Fuzz Button connectors /CPW/Microstrip Vertical connection,Micro-nano type,ultra-high frequency

一、Material Designation：φ0.30x1.2mm Floss Pin（i.e. CIN::APSE or Fuzz Button connectors）

二、Product Type：80-011047

三、Trademark：Floss Pin^®、毛纽扣^®、乱丝插针^®

四、Brief Introduction：

       Floss Pin i.e. Fuzz Button connectors is a patent product。made in China, made of Luoyang Fuzz button Interconnect.

       Floss Pin i.e. Fuzz Button connectors is the most reliable and advanced welding compression-style interconnect technology。Floss Pin i.e. Fuzz Button connector provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。

       Floss Pin i.e. Fuzz Button connector is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。

五、Common Applications：

1、High Speed RF Solutions：Satellite Antennas；Phased Array Antennas；

2、Smart Munitions：Missiles：Small Diameter Munitions

3、Airborne Computers and Avionics：MCM，ASIC，CPU，LRM，Gyros

六、Outline Dimension：customized, Special size, fast delivery

Fill rate：25%±5%

七、Technical Data：

Frequency：DC to 90 GHz

Rating current：0.3A

resistance：≤30mΩ

Compliance/Travel：0.1—0.3mm or 10—20% （＜30%）

Compression/Force：＞20g（With the compression increases）

Mating Cycles：＞5000 times

Operating Temperature：-60 C---150 C°

八、Wire Type：Au/BeCu：

C17200 or QBe2，Plating Au0.3um

九、Packing：

       The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.

φ0.3x1.2mm毛纽扣80-012047 Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）

       Floss Pin®（namely Fuzz Button or CIN::APSE） is a patent product of Luoyang Weilian electronic CO.LTD。It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
        It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
       We are the first company successfully developed and mass production the Fuzz Button® or CIN::APSE® in the China。The product performance is leading inChina, and the key parameters have reached the level of similar products such as fuzy buttons®  from Custom Interconnects in theUSA.

毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®）是洛阳毛纽扣互连科技的专利产品，采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。

我们是国内首家研制成功并能批量生产毛纽扣的公司，产品性能居国内领先地位，关键参数已达到美国Fuzz Button®或CIN::APSE®等同类产品的水平。

毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。

Introduction

FlossPin® (i.e. Fuzz Buttons) are proprietary contacts pins available ONLY from Luoyang Fuzz button Interconnect Technology Co.,Ltd. and anufactured ONLY in theCHINA.

FlossPin® (i.e. Fuzz Buttons)  offer low distortion, high frequency capabilities, superior grounding, low insertion force, cost effectiveness, shock/vibration resistance, low weight and extended life cycles.

PRODUCT APPLICATIONS: Connectors, PCB / PWB / Mezzanine Interposers, Test Sockets, Packaging, DC / RF / GHz / Coaxial.

PAD TYPES: LGA, BGA, PGA, CGA, QFN, MCM.

CONTACT PITCH: 0.4mm and above.

Frequency Capability: to 40 GHz in natural state, to 100 GHz with design optimization.

For DC, VHF, UHF, L, S, C, X, Ku, Ka and Q Band applications.

简介

FlossPin（Fuzz button）是专有的触针，只能从洛阳Fuzz button Interconnect Technology Co.，Ltd.获得，仅在中国制造。

FlossPin（毛纽扣）提供低失真、高频性能、优越的接地、低插入力、成本效益、抗冲击/振动、低重量和延长寿命。

产品应用：连接器，PCB/PWB/夹层夹层，测试插座，封装，DC /Rf/GHG/同轴电缆。

焊盘类型：LGA、BGA、PGA、CGA、QFN、MCM。

接触节距：0.4毫米及以上。

频率能力：在自然状态下达到40GHz，在设计优化下达到100GHz。

适用于DC、VHF、UHF、L、S、C、X、Ku、Ka和Q波段。

Tolerances

Diameter +/-0.05mm (exceptions are .010"/.015" dia)

Length +0.2mm/-0

Fill +/-2%

For custom tolerances, please contact factory.

FlossPin® (i.e. Fuzz Buttons) are to be measured in the uncompressed state.

公差

直径：+/-0.05mm（直径0.010“/.015”除外）

长度：+0.2mm/-0

填充率：+/-2%

如需定制公差，请联系工厂。

FlossPin（绒毛按钮）应在未压缩状态下测量。

History

FlossPin® (i.e. Fuzz Buttons) were first introduced to the electronics marketplace in 1959 and were mainly used in grounding applications.

Soon the military sector took notice and began to utilize them in shock-resistant PCB connectors for missile and satellites.

Today FlossPin® (i.e. Fuzz Buttons) still serve the military and commercial markets in many surprising applications.  You will find them in missiles, satellites, space probes, aircraft, test floors, laboratories, radar arrays, antennas, supercomputers, crash test dummies, automotive production, communications and even packaged inside high-end RF products such as attenuators and amplifiers.  Because they are so versatile, FlossPin® (i.e. Fuzz Buttons) can be used for DC, VHF, UHF, L, S, C, X, Ku, Ka and Q Bands.

历史

FlossPin®（毛纽扣）于1959年首次引入电子市场，主要用于接地应用。

不久，军事部门注意到了这一点，并开始将其用于导弹和卫星的抗冲击PCB连接器。

如今，FlossPin（Fuzz button）仍然在军事和商业市场上有许多令人惊讶的应用。你会在导弹、卫星、太空探测器、飞机、试验场、实验室、雷达阵列、天线、超级计算机、碰撞试验假人、汽车生产、通信，甚至包装在高端射频产品（如衰减器和放大器）中发现它们。因为它们用途广泛，所以FlossPin（毛纽扣）可用于DC、VHF、UHF、L、S、C、X、Ku、Ka和Q波段。
