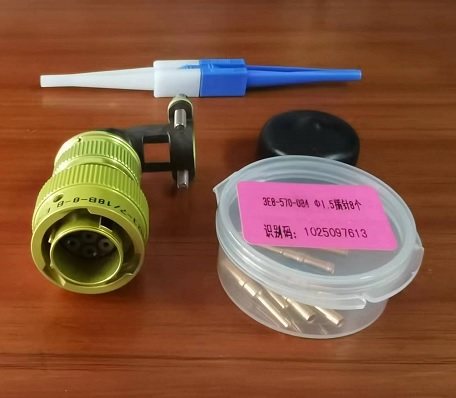

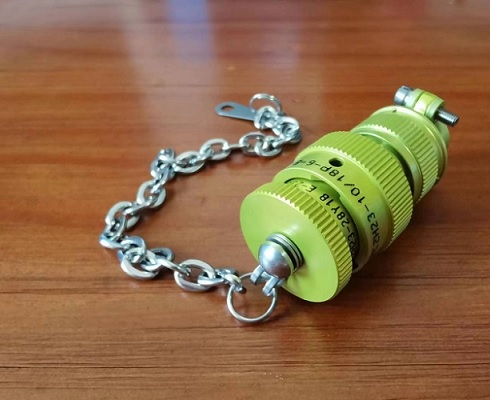

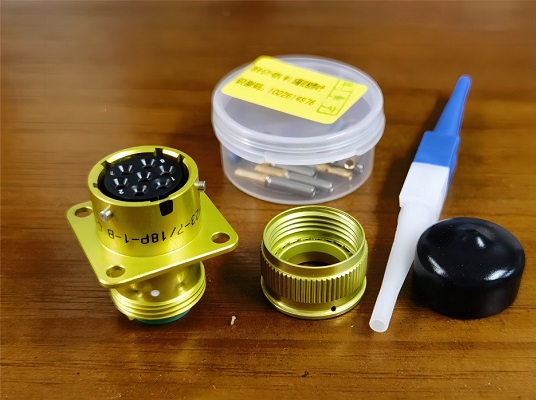

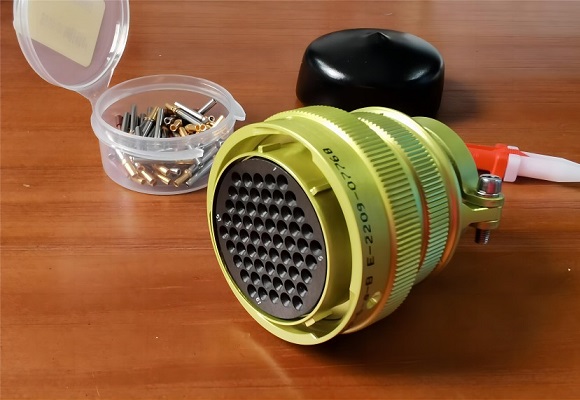

【ZH23 Series】Environment Resistant Bayonet Electrical Connector

(СНЦ23 Russian Military Standard / SNTs23)

一、Material Designation：ZH23 series：(СНЦ23 Russian Military Standard / SNTs23)

二、Product Type：ZH23 series：СНЦ23

三、Trademark：Floss Pin^®、毛纽扣^®、乱丝插针^®

四、Brief Introduction：

     СНЦ The 23 series electrical connector has the characteristics of environmental resistance, five key positioning to prevent insertion errors, and quick connection with a bayonet. The contact parts are crimped and then released, used in low-frequency AC/DC circuits. The domestically produced model in China is ZH23。

七、Technical Data：

Environmental temperature：-60 ℃~+200 ℃ (maximum 200 ℃)

Vibration： acceleration 40g (1-5000Hz)

Impact： acceleration 500g (once); 150g (multiple times);

Salt spray resistance for 96 hours

Relative humidity：30 ℃~60 ℃, 92%~98%

Insulation resistance ≥ 5000MQ

Mechanical and working life insertion and extraction 500 times

Technical conditions ГЕО. three hundred and sixty-four point two four one ТУ

Technical specification Q/3E 20005-2003

八、Packing：

The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.
