Φ0.508x2.5mm 80-020098 Floss Pin i.e.  Fuzz Button connectors has the characteristics of small size, light weight, high frequency and good performance.

       Φ0.5x2.5mm Floss Pin (i.e. CIN::APSE or 80-020098 Fuzz Button connectors) has a diameter of 0.508mm and a length of 2.5mm, and can be used for board-to-board connection with a board spacing of about 2.3mm, ultra-small board spacing, vertical connection .

       Φ0.50x2.5mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is suitable for transmitting RF signals up to 40G.

        Since the Φ0.508x2.5mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is in elastic contact with the pcb and has zero insertion force, it is easy to install and maintain.

       Φ0.5x2.5mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is widely used in aviation, aerospace, communication, satellite, UAV and other fields.

       The technical specifications of Φ0.50x2.5mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) are as follows:

Φ0.508x2.5mm Floss Pin i.e. Fuzz Button connectors 80-020098 /CPW/Microstrip Vertical connection

一、Material Designation：Φ0.508x2.5mm Floss Pin（i.e. CIN::APSE or Fuzz Button connectors）

二、Product Type：80-020098、Φ0.5x2.5mm

三、Trademark：Floss Pin^®、毛纽扣^®、乱丝插针^®

四、Brief Introduction：

       Floss Pin（i.e. Fuzz Button connectors and CIN::APSE）is a patent product。made in China, made of Luoyang Fuzz button Interconnect.

       Floss Pin i.e. Fuzz Button connectors is the most reliable and advanced welding compression-style interconnect technology。Floss Pin i.e. Fuzz Button connector provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。

       Floss Pin i.e. Fuzz Button connector is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。

五、Common Applications：

1、High Speed RF Solutions：Satellite Antennas；Phased Array Antennas；

2、Smart Munitions：Missiles：Small Diameter Munitions

3、Airborne Computers and Avionics：MCM，ASIC，CPU，LRM，Gyros

六、Outline Dimension：customized, Special size, fast delivery

Fill rate：25%±5%

七、Technical Data：

Frequency：DC to 40 GHz

Rating current：1—3A

resistance：≤20mΩ

Compliance/Travel：0.1—0.3mm or 10—20% （＜30%）

Compression/Force：＞50g（With the compression increases）

Mating Cycles：＞5000 times

Operating Temperature：-60 C---150 C°

八、Wire Type：Au/BeCu：

C17200 or QBe2，Plating Au0.3um

九、Packing：

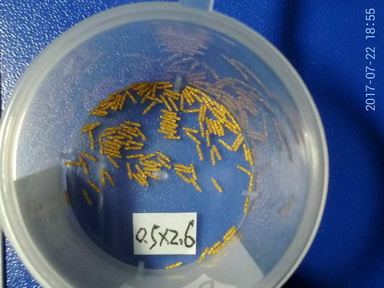

The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.
