Φ1.0x5.0mm 80-040200 Floss Pin i.e. Fuzz Button connectors has a diameter of 1.02mm and a length of 5.0mm, and can be used for board-to-board connection with a board spacing of about 4.8mm, ultra-small board spacing, vertical connection , End face elastic contact, no need for welding.

       Φ1.0x5.0mm Floss Pin 80-040200 (i.e. CIN::APSE or Fuzz Button connectors) can withstand 3--5A high current, suitable for power supply, can transmit low frequency signal, digital signal and RF signal, cut-off frequency up to 30G.

       Since the Φ1.0x5.0mm Floss Pin (i.e. CIN::APSE or 80-040200 Fuzz Button connectors) is in elastic contact with the pcb and has zero insertion force, it is easy to install and maintain.

       Φ1.0x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) with a pitch as small as 1.2mm, has the characteristics of high density, small size, light weight, high frequency and good performance.

       Φ1.0x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is widely used in aviation, aerospace, communication, satellite, UAV and other fields.

       The technical specifications of Φ1.0x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) are as follows:

Φ1.0x5.0mm 80-040200 high current Floss Pin i.e. Fuzz Button connectors /CPW/Microstrip Vertical connection

一、Material Designation：Φ1.0x5.0mm Floss Pin（i.e. CIN::APSE or Fuzz Button connectors）

二、Product Type：80-040200、Φ1.02x5.0mm

三、Trademark：Floss Pin^®、毛纽扣^®、乱丝插针^®

四、Brief Introduction：

       Floss Pin（i.e. Fuzz Button connectors and CIN::APSE）is a patent product。made in China, made of Luoyang Fuzz Button Interconnect.

       Floss Pin i.e. Fuzz Button connectors is the most reliable and advanced welding compression-style interconnect technology。Floss Pin i.e. Fuzz Button connector provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。

       Floss Pin i.e. Fuzz Button connector is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。

五、Common Applications：

1、High Speed RF Solutions：Satellite Antennas；Phased Array Antennas；

2、Smart Munitions：Missiles：Small Diameter Munitions

3、Airborne Computers and Avionics：MCM，ASIC，CPU，LRM，Gyros

六、Outline Dimension：customized, Special size, fast delivery

Fill rate：25%±5%

七、Technical Data：

Frequency：DC to 30 GHz

Rating current：3—5A

resistance：≤20mΩ

Compliance/Travel：0.1—0.3mm or 10—20% （＜30%）

Compression/Force：＞70g（With the compression increases）

Mating Cycles：＞5000 times

Operating Temperature：-60 C---150 C°

八、Wire Type：Au/BeCu：

C17200 or QBe2，Plating Au0.3um

九、Packing：

The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.

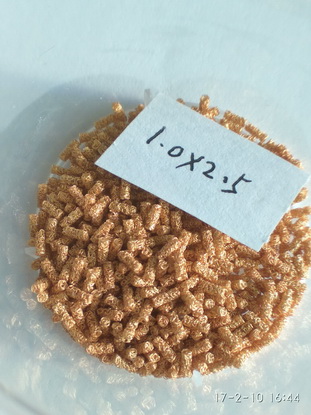

φ1.0x2.5mm毛纽扣Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）

毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®）是洛阳微连电子的专利产品ZL2015202039720，采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。

我们是国内较早研制成功并能批量生产毛纽扣的公司，产品性能居国内领先地位，关键参数已达到美国Fuzz Button®或CIN::APSE®等同类产品的水平。

毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。

       Floss Pin（namely Fuzz Button® or CIN::APSE®） is a patent product of Luoyang Weilian electronic CO.LTD。It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
        It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
       We are the company successfully developed and mass production the Fuzz Button® or CIN::APSE®）in the China。

        customized, Special size, fast delivery 可按要求定制，特殊尺寸，快速供货
