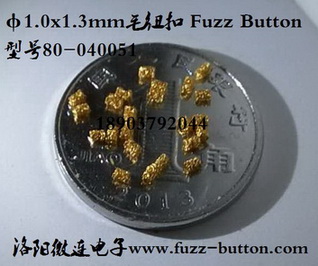

φ1.0x1.3mm毛纽扣Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）
- Type 80-040051
- Description
毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上
产品说明
φ1.0x1.3mm毛纽扣Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）
毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®）是洛阳微连电子的专利产品ZL2015202039720，采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。
我们是国内较早研制成功并能批量生产毛纽扣的公司，产品性能居国内领先地位，关键参数已达到美国Fuzz Button®或CIN::APSE®等同类产品的水平。
毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。
Floss Pin（namely Fuzz Button® or CIN::APSE®） is a patent product of Luoyang Weilian electronic CO.LTD。It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
We are the company successfully developed and mass production the Fuzz Button® or CIN::APSE®）in the China。
|
Fuzz Button® or CIN::APSE® Standard Offerings 毛纽扣标准产品 |
|
|
Model 型号：80-040051 |
Size 规格：φ1.0x1.3mm |
|
Wire Type 材料：Au/BeCu |
Volume Fill Rate 填充率：28% |
|
Tolerances公差：Diameter +/-5%, Length +0.20mm, Fill +/-2% |
|
|
Technical Specifications 技术说明 |
|
|
Applications应用：LGA, BGA, PGA, CGA, QFN |
Operating Temperature工作温度：-60°C – 150°C |
|
Current Capability额定电流：7A |
Resistance接触电阻：<10mΩ |
|
Mating Cycles机械寿命：Up to 5,000 |
Mating Cycles with Hardhats：Up to 500,000 |
|
Compliance/Travel行程：15 – 30% of Length |
Compression/Force载荷：100g |
|
Crosstalk/Bandwidth： -20dB@10GHz |
Return Loss/Bandwidth (S11)：-15dB@10GHz |
|
Insertion Loss/Bandwidth (S21)： -2dB@10GHz /-1dB@26GHz |
Ground/Mutual Capacitance电容： 0.16pF/0.008pF |
|
Self/Mutual Inductance电感：0.19nH/0.03nH |
Rise Time/Fall Time： 50ps/50ps |
customized, Special size, fast delivery 可按要求定制，特殊尺寸，快速供货
There are 10 kinds of product specifications （0.5x1mm、0.5x1.4mm、0.5x1.6mm、0.5x1.8mm、0.5x3mm、0.5x4mm、0.5x4.5mm、0.5x5mm、1x5mm、1.6x1.6mm）。
Floss Pin®已有10种规格产品（0.5x1mm、0.5x1.4mm、0.5x1.6mm、0.5x1.8mm、0.5x3mm、0.5x4mm、0.5x4.5mm、0.5x5mm、1x5mm、1.6x1.6mm）。
Install 安装使用：
Floss Pin®毛纽扣是一个独特的Z轴压缩互连技术，能提供卓越的机械和电气性能。
The basic Floss Pin® contact configuration consists of a contact installed into a customized plastic insulator with hole design。 Once in place， the contact extends on both sides of the insulator。
Floss Pin®毛纽扣被装置在定制的塑料绝缘体上的腰形孔中，一旦装置就位，该触件即延伸到绝缘体的两侧。
Quick， Solderless Installation快速，无焊安装
Floss Pin® is easily installed in two basic steps， without soldering。
First， using alignment features， the Floss Pin® interconnect is positioned between two components with matching connection footprints。
Next， the two components are compressed and fastened together。
Its as simple as that。
Floss Pin®毛纽扣安装简易只需两步且无需焊接。
第一步，对齐，将Floss Pin®毛纽扣放置在两个有匹配连接引脚的组件之间。
第二步，将两个组件压紧并固定在一起。
就这么简单。
Contact Only 仅接触件
This Floss Pin® basic configuration provides multiple points of contact and mechanical wipe. Ideally suited for applications requiring high speed, low profile, and high density, this configuration is commonly used in LGA sockets.
Floss Pin®毛纽扣提供多点接触和物理接触，非常适用于高速，小型化和高密度的应用。这种配置通常应用于LGA插座中。
Plunger-Contact 塞针--接触件
The addition of a gold-plated brass plunger increases the handling durability of the Floss Pin® contacts and provides additional height. This configuration is ideally suited for board-to-board and test applications.
镀金黄铜塞针的添加增强了Floss Pin®触件的操作耐久性并且提供额外的高度，这种配置非常适用于板对板和测试领域的应用。
Plunger-Contact-Plunger 塞针---接触件---塞针
Adding a second plunger to the connector results in a tall system (up to 1.0"), along with it being the most durable in terms of handling. This configuration is best suited for contacts that see excessive handling from both sides. Commonly used for parallel board-to-board stacking connector applications.
在连接器里增加第二个塞针，使得系统高度达1.0，在操作方面最为持久。
这种配置最适用于两侧需要过度操作的应用场合，常用于两个平行板之间板对板堆叠式的连接应用。
Contact-Spacer-Contact 接触件---垫件---接触件
Using two contacts with a gold-plated brass spacer in between creates a connector with all the benefits of the contact-only style, and the ability to span greater z-axis heights (up to 1.0"). This configuration is most often used when multiple points of contact are needed in a tall connector.
在两个触件间加入一个镀金黄铜材质的垫件，使得连接器集合了仅触件设计的所有优点并且能够使Z轴高度至1.0。这种配置经常被使用在需要多点接触的大高度连接器中。
