Φ0.508x5.0mm Floss Pin i.e. Fuzz Button 80-020200 connectors /CPW/Microstrip Vertical connection
- Type 80-020200
- Description
1、Diameter 0.5mm, length 5.0mm
2、Small size, small pitch 0.7mm, high frequency 40G
3、Board-to-Board connections
4、Vertical connection
5、Zero-insertion force
6、Solderless connection
7、End face elastic contact
8、Large-tolerance design
Φ0.508x5.0mm 80-020200 Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) has the characteristics of small size, light weight, high frequency and good performance.

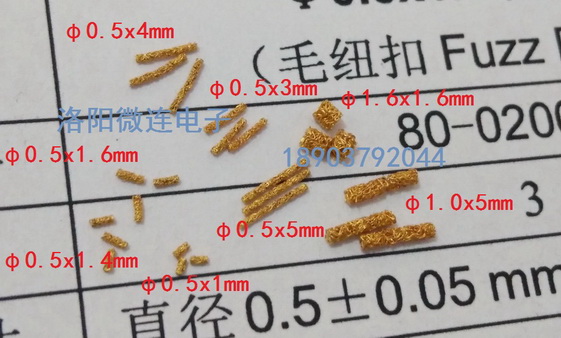

Φ0.50x5.0mm Floss Pin (i.e. CIN::APSE or 80-020200 Fuzz Button connectors) has a diameter of 0.508mm and a length of 5mm, and can be used for board-to-board connection with a board spacing of about 4.8mm, ultra-small board spacing, vertical connection .
Φ0.5x5.0mm Floss Pin 80-020200 (i.e. CIN::APSE or Fuzz Button connectors) is suitable for transmitting RF signals up to 40G.
Since the Φ0.508x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is in elastic contact with the pcb and has zero insertion force, it is easy to install and maintain.
Φ0.50x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) is widely used in aviation, aerospace, communication, satellite, UAV and other fields.
The technical specifications of Φ0.5x5.0mm Floss Pin (i.e. CIN::APSE or Fuzz Button connectors) are as follows:
Φ0.508x5.0mm Floss Pin i.e. Fuzz Button 80-020200 connectors /CPW/Microstrip Vertical connection
一、Material Designation：Φ0.508x5.0mm Floss Pin（i.e. CIN::APSE or Fuzz Button connectors）
二、Product Type：80-020200、Φ0.5x5.0mm
三、Trademark：Floss Pin®、毛纽扣®、乱丝插针®
四、Brief Introduction：
Floss Pin（i.e. Fuzz Button connectors and CIN::APSE）is a patent product。made in China, made of Luoyang Fuzz button Interconnect.
Floss Pin i.e. Fuzz Button connectors is the most reliable and advanced welding compression-style interconnect technology。Floss Pin i.e. Fuzz Button connector provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
Floss Pin i.e. Fuzz Button connector is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
五、Common Applications：
1、High Speed RF Solutions：Satellite Antennas；Phased Array Antennas；
2、Smart Munitions：Missiles：Small Diameter Munitions
3、Airborne Computers and Avionics：MCM，ASIC，CPU，LRM，Gyros
六、Outline Dimension：customized, Special size, fast delivery
Fill rate：25%±5%
七、Technical Data：
Frequency：DC to 40 GHz
Rating current：1—3A
resistance：≤20mΩ
Compliance/Travel：0.1—0.3mm or 10—20% （＜30%）
Compression/Force：＞50g（With the compression increases）
Mating Cycles：＞5000 times
Operating Temperature：-60 C---150 C°
八、Wire Type：Au/BeCu：
C17200 or QBe2，Plating Au0.3um
九、Packing：
The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.
φ0.5x5.0mm毛纽扣Floss Pin®（国外称为Fuzz Button®或CIN::APSE®）
Floss Pin®（namely Fuzz Button or CIN::APSE） is a patent product of Luoyang Weilian electronic CO.LTD。It is the most reliable and advanced welding compression-style interconnect technology。It provides the board-to-board advantages for high-speed telecom，stringent military and aerospace，and demanding automotive applications。
It is the ideal interconnect solution for vertical interconnection of the microwave module，Ideally suited for applications in which high reliability，high-speed signals，tight envelope dimensions，high density，and extreme environmental conditions need to be met。
We are the company successfully developed and mass production the Fuzz Button® or CIN::APSE® in the China。The product performance is leading inChina, and the key parameters have reached the level of similar products such as fuzy buttons® from Custom Interconnects in theUSA.
毛纽扣Floss Pin®，（国外称为Fuzz Button®或CIN::APSE®）是洛阳毛纽扣互连科技的专利产品，采用先进可靠的无焊接压缩互连方式。它适合PCB对PCB垂直连接的高速传输，能满足军事、航空航天和汽车等应用的严格要求。
我们是国内较早研制成功并能批量生产毛纽扣的公司，产品性能居国内领先地位，关键参数已达到美国Fuzz Button®或CIN::APSE®等同类产品的水平。
毛纽扣是微波模块垂直互连的理想解决方案，是雷达、电子对抗设备中传输微波信号的重要元件，广泛用于各类微波器件和组件上，连接可靠性高、高速传输（大于40GHz）、低高度（扁平连接）、高密度、可适应极端环境。
Introduction
FlossPin® (i.e. Fuzz Buttons) are proprietary contacts pins available ONLY from Luoyang Fuzz button Interconnect Technology Co.,Ltd. and anufactured ONLY in theCHINA.
FlossPin® (i.e. Fuzz Buttons) offer low distortion, high frequency capabilities, superior grounding, low insertion force, cost effectiveness, shock/vibration resistance, low weight and extended life cycles.
PRODUCT APPLICATIONS: Connectors, PCB / PWB / Mezzanine Interposers, Test Sockets, Packaging, DC / RF / GHz / Coaxial.
PAD TYPES: LGA, BGA, PGA, CGA, QFN, MCM.
CONTACT PITCH: 0.4mm and above.
Frequency Capability: to 40 GHz in natural state, to 100 GHz with design optimization.
For DC, VHF, UHF, L, S, C, X, Ku, Ka and Q Band applications.
简介
FlossPin（Fuzz button）是专有的触针，只能从洛阳Fuzz button Interconnect Technology Co.，Ltd.获得，仅在中国制造。
FlossPin（毛纽扣）提供低失真、高频性能、优越的接地、低插入力、成本效益、抗冲击/振动、低重量和延长寿命。
产品应用：连接器，PCB/PWB/夹层夹层，测试插座，封装，DC /Rf/GHG/同轴电缆。
焊盘类型：LGA、BGA、PGA、CGA、QFN、MCM。
接触节距：0.4毫米及以上。
频率能力：在自然状态下达到40GHz，在设计优化下达到100GHz。
适用于DC、VHF、UHF、L、S、C、X、Ku、Ka和Q波段。
Tolerances
Diameter +/-0.05mm (exceptions are .010"/.015" dia)
Length +0.2mm/-0
Fill +/-2%
For custom tolerances, please contact factory.
FlossPin® (i.e. Fuzz Buttons) are to be measured in the uncompressed state.
公差
直径：+/-0.05mm（直径0.010“/.015”除外）
长度：+0.2mm/-0
填充率：+/-2%
如需定制公差，请联系工厂。
FlossPin（绒毛按钮）应在未压缩状态下测量。
History
FlossPin® (i.e. Fuzz Buttons) were first introduced to the electronics marketplace in 1959 and were mainly used in grounding applications.
Soon the military sector took notice and began to utilize them in shock-resistant PCB connectors for missile and satellites.
Today FlossPin® (i.e. Fuzz Buttons) still serve the military and commercial markets in many surprising applications. You will find them in missiles, satellites, space probes, aircraft, test floors, laboratories, radar arrays, antennas, supercomputers, crash test dummies, automotive production, communications and even packaged inside high-end RF products such as attenuators and amplifiers. Because they are so versatile, FlossPin® (i.e. Fuzz Buttons) can be used for DC, VHF, UHF, L, S, C, X, Ku, Ka and Q Bands.
历史
FlossPin®（毛纽扣）于1959年首次引入电子市场，主要用于接地应用。
不久，军事部门注意到了这一点，并开始将其用于导弹和卫星的抗冲击PCB连接器。
如今，FlossPin（Fuzz button）仍然在军事和商业市场上有许多令人惊讶的应用。你会在导弹、卫星、太空探测器、飞机、试验场、实验室、雷达阵列、天线、超级计算机、碰撞试验假人、汽车生产、通信，甚至包装在高端射频产品（如衰减器和放大器）中发现它们。因为它们用途广泛，所以FlossPin（毛纽扣）可用于DC、VHF、UHF、L、S、C、X、Ku、Ka和Q波段。
Install 安装使用：
Floss Pin®毛纽扣是一个独特的Z轴压缩互连技术，能提供卓越的机械和电气性能。
The basic Floss Pin® contact configuration consists of a contact installed into a customized plastic insulator with hole design。 Once in place， the contact extends on both sides of the insulator。
Floss Pin®毛纽扣被装置在定制的塑料绝缘体上的腰形孔中，一旦装置就位，该触件即延伸到绝缘体的两侧。
Quick， Solderless Installation快速，无焊安装
Floss Pin® is easily installed in two basic steps， without soldering。
First， using alignment features， the Floss Pin® interconnect is positioned between two components with matching connection footprints。
Next， the two components are compressed and fastened together。
Its as simple as that。
Floss Pin®毛纽扣安装简易只需两步且无需焊接。
第一步，对齐，将Floss Pin®毛纽扣放置在两个有匹配连接引脚的组件之间。
第二步，将两个组件压紧并固定在一起。
就这么简单。
Contact Only 仅接触件
This Floss Pin® basic configuration provides multiple points of contact and mechanical wipe. Ideally suited for applications requiring high speed, low profile, and high density, this configuration is commonly used in LGA sockets.
Floss Pin®毛纽扣提供多点接触和物理接触，非常适用于高速，小型化和高密度的应用。这种配置通常应用于LGA插座中。
Plunger-Contact 塞针--接触件
The addition of a gold-plated brass plunger increases the handling durability of the Floss Pin® contacts and provides additional height. This configuration is ideally suited for board-to-board and test applications.
镀金黄铜塞针的添加增强了Floss Pin®触件的操作耐久性并且提供额外的高度，这种配置非常适用于板对板和测试领域的应用。
Plunger-Contact-Plunger 塞针---接触件---塞针
Adding a second plunger to the connector results in a tall system (up to 1.0"), along with it being the most durable in terms of handling. This configuration is best suited for contacts that see excessive handling from both sides. Commonly used for parallel board-to-board stacking connector applications.
在连接器里增加第二个塞针，使得系统高度达1.0，在操作方面最为持久。
这种配置最适用于两侧需要过度操作的应用场合，常用于两个平行板之间板对板堆叠式的连接应用。
Contact-Spacer-Contact 接触件---垫件---接触件
Using two contacts with a gold-plated brass spacer in between creates a connector with all the benefits of the contact-only style, and the ability to span greater z-axis heights (up to 1.0"). This configuration is most often used when multiple points of contact are needed in a tall connector.
在两个触件间加入一个镀金黄铜材质的垫件，使得连接器集合了仅触件设计的所有优点并且能够使Z轴高度至1.0。这种配置经常被使用在需要多点接触的大高度连接器中。
