SMP(M)-JHDFB7 RF Connector with Fuzz Button is mounted through Bulkhead with Soldering, and it is connected to the PCB through the board. Connect Stripline。

       SMP(M)-JHDFB7 RF Connector with Fuzz Button is connected to the PCB through the Fuzz Button. It is an elastic contact without soldering and has zero insertion force, so it is easy to install and maintain.

       SMP(M)-JHDFB7 RF Connector with Fuzz Button is widely used in aviation, aerospace, communication, satellite, UAV and other fields.

       The technical indicators of SMP(M)-JHDFB7 RF Connector with Fuzz Button are as follows.

一、Material Designation：SMP (GPO) (Male) MM wave connector with Fuzz Button

二、Product Type：SMP(M)-JHDFB7、SMP(M)-JHDFUZZ7

三、Trademark：Floss Pin^®、毛纽扣^®、乱丝插针^®

四、Brief Introduction：

        Floss Pin（i.e. Fuzz Button connectors and CIN::APSE）is a patent product。made in China, made of Luoyang Fuzz Button Interconnect.

        1. One end is vertically connected to the PCB board or microstrip circuit, surface mounted, and the end face of the Fuzz Button is used for elastic contact with the pad, without welding, easy to install, adjust and maintain, simple and reliable structure, and excellent performance;

        2. The surface-mounted transmission line and the center needle are coplanar for transmission, with a large position tolerance range;

        3. The other end is a standard SMP (GPO) millimeter wave plug connector interface, Interface and performance compliance: MIL-STD-348A。

五、Common Applications：

1、Internet of Things (IoT)；

2、5G Wireless Infrastructure

3、Smart Cities and agriculture

4、Embedded computing

5、Precision thin substrate mounting

6、Ideal for high speed PCB materials

7、RF test and measurement

8、Stripline, microstrip and coplanar waveguide PCB launch

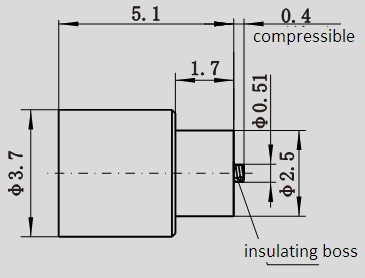

六、Outline Dimension：

七、Technical Data：
A Interface Style：SMP (GPO) Male, compliance: MIL-STD-348A
A Coupling moment：Limited Detent，Interface depth 1.79mm
B Attachment Method：Solderless，elastic contact to pad with Fuzz Buttons
Connector Impedance：50 Ohms
Body Style：Straight，Coaxial Compression，Glass frit seal
Connector Mount Method：through Bulkhead with Soldering
Frequency：DC to 40 GHz
Insertion Loss (dB) ：＜0.1 x Sqt.(f_Ghz) dB
Return loss/VSWR： ＜1.3
Centre Contact：CuBe Gold Plated
Outer Contact：Stainless Steel/ Cu Gold Plated
Dielectric：PEI & PTFE
Operating Temperature：-60 C---150 C°
八、Packing：
The procuction are packed in plastic bottle. The packing list must be in the packing box，which has been gave cliear indication of material designation、order mark、lot number、packet number and procuction total number.

Detachable fuzzy button solderless surface mount millimeter wave connector (socket)

Product features:
1. One end is vertically connected with PCB board or microstrip circuit, surface mounting, elastic contact between the end face of hairpin and pad, no need of welding, easy assembly and maintenance, simple and reliable structure and excellent performance;
2. Surface mounted transmission line and central pin are transmitted in the same plane with large tolerance range;
3. The other end is the standard 1.85mm, 2.4mm, 2.92mm, 3.5mm millimeter wave plug connector interface.
