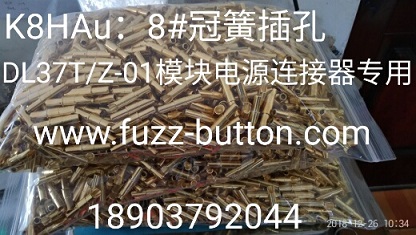

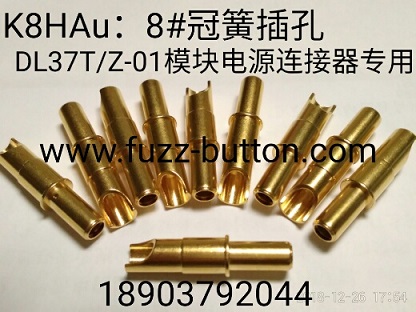

8# Crown spring socket---K8HAu：DL37T/Z-01模块电源连接器专用
- Type K8HAu
- Description
产品广泛应用于通信电源、电力电源、模块化UPS电源、新能源电网设备、大型网络、计算机通信及工控、电力和医疗设备LED显示屏及电源、两轮电动平衡车等领域
8# Crown spring socket---K8HAu：DL37T/Z-01模块电源连接器专用
可与FCI POWER BLADE系列 泰科 ELCON APP 中航光电DL 通茂TM DJL系列产品互换互配.

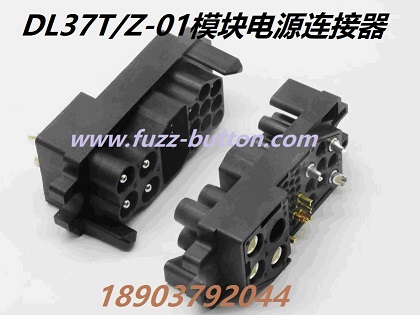

模块电源连接器采用当今世界先进的冠簧插孔为接触件，因而具有高动态接触可靠性。除22#、20#接触件镀金外，其他的接触镀银。目前针孔件的端接形式有压接、板接、焊接和螺纹连接等。我们可以按照客户的要求，在短时间内，设计出您满意的产品。
Contacts:
Pin and socket: brass or copper alloy
Crown spring: beryllium bronze
Surface: Unless other specified, #22 and #20 Contacts are gilded, and the others are silver-gilt.
Application:
1. Intelligence high frequency switching power supply: Communication power supply, electric power, railway power supply, LED power, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.
2. Intelligence high frequency switching power supply
3 UPS
4. Contravariant power
5. Drawer low-voltage cabinet etc.
|
Operating Environment
|
|||
|
Operating Temperature
|
–55 to + 125 oC
|
||
|
Relative Humidity
|
98% (40 oC)
|
||
|
Vibration
|
10 to 2,000Hz (a = 147m/s2)
|
||
|
Main Technical Specifications
|
|||||
|
Insulation Resistance
|
≥ 1,000MΩ
|
||||
|
Mechanical Life
|
1,000 times
|
||||
|
Housing Material
|
PET G30 UL94V-0 Black
|
||||
|
|
Spec.
|
Signal Contact
|
Power Contact
|
||
|
#20
|
#12
|
#8
|
|||
|
Quantity
|
24
|
9
|
4
|
||
|
Rated Current
|
5A
|
35A
|
75A
|
||
|
Contact Resistance
|
≤5.0mΩ
|
≤1.0mΩ
|
≤0.75mΩ
|
||
|
Withstand Voltage
|
1,000V
|
1,500V
|
1,500V
|
||
|
Surface Material
|
Gold plated over nickel
|
Silver plated over nickel
|
|||
|
Terminal Style
|
#20, #16 and #12: Crimping (Y), PCB Tail (B), Solder Cup(H)
|
||||
|
Material
|
Pin and Socket
|
Brass or copper
|
|||
|
Crown Spring
|
Beryllium bronze
|
||||
Our Products Features And Advantage
1.Material:The outer covering uses the High temperature resistant, glass fiber reinforced and flame retardant polyester are used as insulating materials.
2.The socket uses the world's most advanced crown spring jack as the contact piece
3.so it has high dynamic contact reliability. It is characterized by large current carrying capacity, gentle and durable plugging, support for equipment to plug-in charged and other advantages
4. the end connection forms of contact parts include pressing, plate connection, welding and thread connection etc Various forms
5. Be interchangeable with the products of JONHON DL series, and Power Connector products of AMP/TYCO and ELCON.
Our Product Application And Display
1.Intelligence high frequency switching power supply, Communication power supply, electric power, railway power supply, LED power, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.
2.UPS
3.Charging pile module power supply
4.Contravariant power
5.Drawer low-voltage cabinet etc
