SIZE 8 Twinax CONTACTS FOR MIL-DTL-38999 Series III
- Type M39029/90-529 & /91-530，J1216/90-529 & /91-530
- Description
MATCHED IMPEDANCE SIZE 8 COAXIAL CONTACTS FOR RF/MICROWAVE, HIGH FREQUENCY AND HIGH PERFORMANCE REQUIREMENTS

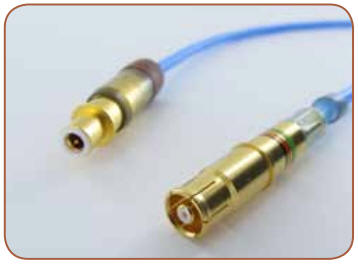

SIZE 8 Twinax CONTACTS FOR MIL-DTL-38999 Series III
These contacts are required for high frequency interconnection. High speed Coax contacts within a connector provide the shielding protection in order to eliminate interferences from outside electrical sources, and many cases the RF/Microwave performance needed in the circuitry of many applications.
SIZE 8 Twinax CONTACTS FOR MIL-DTL-38999 Series III
TYPICAL ELECTRICAL PERFORMANCE:
Voltage Rating: 500 Vrms max. @ sea level
Contact Resistance:
Center @ 1 Amp: 55 millivolts max. voltage drop @ 25°C
Intermediate @ 1 Amp: 55 millivolts max. voltage drop @ 25°C
Outer @ 12 Amps: 75 millivolts max. voltage drop @ 25°C
Operating Frequency: 0–20 MHz
Dielectric Withstanding Voltage:
Center to Intermediate: 1000 VAC Rms @ Sea Level
Intermediate to Outer: 500 VAC Rms@ Sea Level
