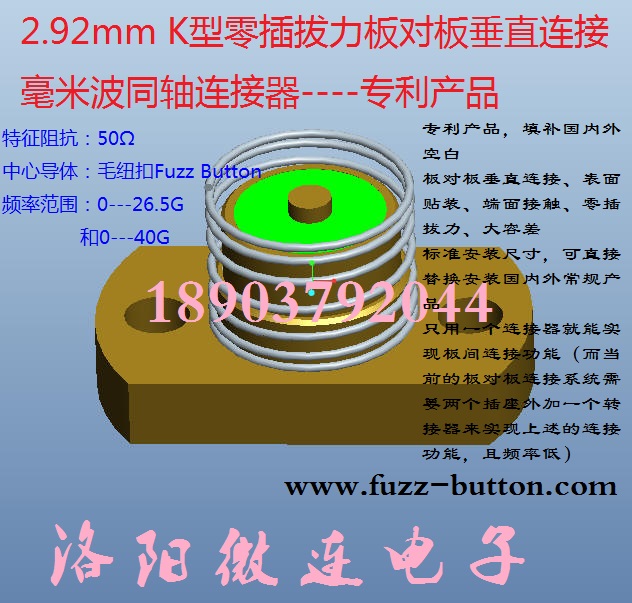

K 2.92mm zero insertion force plate on the plate vertically connected to the millimeter wave coaxial connector - patent products

     Products divided into two series: 40g and 20g products, a connector can only achieve inter board connection function to connect more easily (and the current board to board connector system need two socket connector or plus an adapter to achieve the connection function and low frequency).

Product features:
     1, plate to plate vertical connection, can surface mount, end contact, zero insertion force, simple and reliable structure, frequency band width;
     2, surface mount transmission line and central needle coplanar transmission, large position tolerance range;
By 3, miniaturization, excellent electrical performance, low price, economy of design with only one connector), more than 1 million times repeatedly connected, can be designed according to customer requirements of specific products.

Introduction:
     Number of the interconnected system due to the base station of the integration, miniaturization and low cost, the original module through external backplane cable assembly is connected with the way will be more and more by internal parallel to the circuit board on the circuit board is directly interconnected system replaced and asked with a pair of parallel circuit board also increased, the circuit board of circuit board interconnection system in RF connector market share will be more and more big.
     The radio frequency coaxial connector which is vertically connected with the board of the latest development of our company is a kind of RF coaxial connector which can adapt to the large axial and radial tolerance circuit board to the circuit board or the radio frequency module.
     The series end of the connector can be through a SMT welding or screw connection with the circuit board in the mode of connection, on the other end of the elastic inner conductor and the outer conductor and the circuit board contact pressure, so the series connector only a connector can plate connection function, make it easier to connect, and the current board to board connector system need two socket connector or plus an adapter to achieve the connection function.
     Advanced and reliable without welding compression way to interconnect coat buttons loaded fuzz button as the center conductor, has a plate of plate vertically connected, surface mount, end face contact, zero insertion force and other characteristics by using the series connectors, structure is simple and reliable, easy manufacture, low cost, can transfer large power signal. In some special applications such as military communication base station, the connector becomes the preferred.

主要技术指标：
